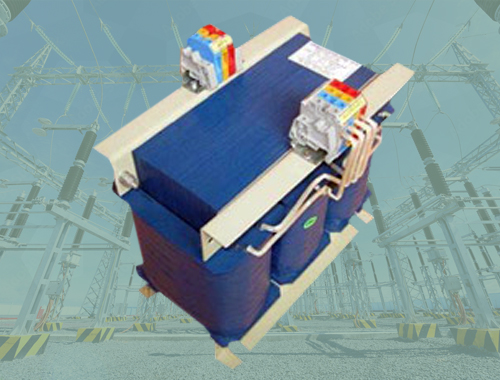

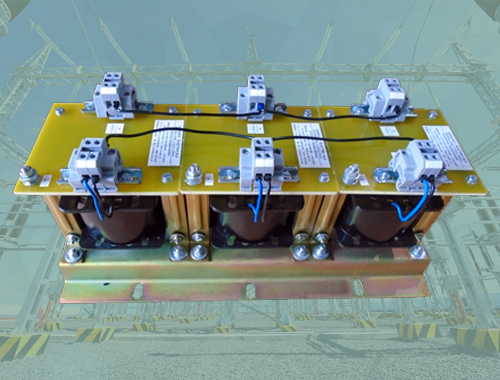

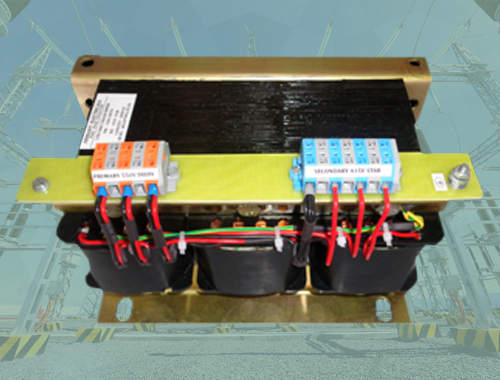

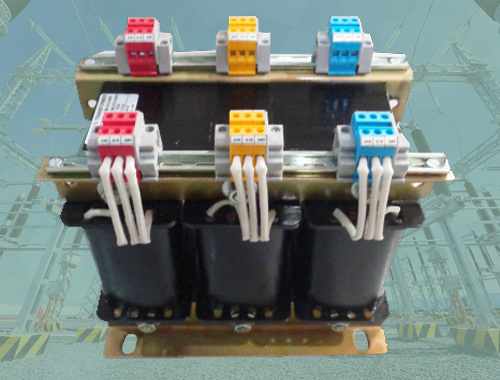

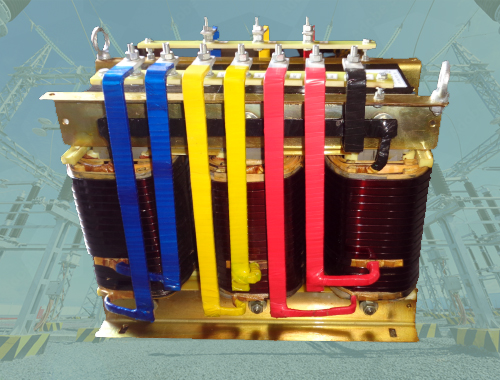

A three-phase transformer, also known as a 3ph transformer, is a type of electrical
transformer used to transfer electrical power between three-phase systems. It
consists of three sets of primary and secondary windings, each wound on a separate
core leg. The windings are typically connected in either a wye (star) or delta
configuration.
Here are some key features and characteristics of a three-phase transformer:
Three primary windings: A three-phase transformer has three separate primary
windings, one for each phase of the electrical system. These windings are designed to
handle the higher voltage and current levels associated with three-phase power.
Three secondary windings: Similarly, there are three secondary windings,
corresponding to each primary winding. These windings provide the transformed
voltage and current to the load.
Core structure: The three-phase transformer usually has a three-legged core structure, with each leg supporting one set of windings. The three legs are often arranged in a triangular shape, forming a yoke at the top.
Connections: The primary windings can be connected in either a wye (Y) or delta (∆) configuration, depending on the application and system requirements. The secondary windings are also connected in a corresponding configuration.
Voltage transformation: A three-phase transformer can step up or step down the
voltage in a three-phase power system. For instance, a step-down transformer
reduces the higher voltage from the primary side to a lower voltage level on the
secondary side.
Power transfer: Three-phase transformers are used to transfer electrical power
between three-phase systems, such as in electric power distribution networks,
industrial applications, and large-scale commercial buildings.
Efficiency and cooling: Like other transformers, three-phase transformers operate
with high efficiency and require appropriate cooling mechanisms to dissipate heat
generated during operation. Cooling methods may include air cooling, oil cooling, or a combination of both.
Three-phase transformers play a crucial role in power transmission and distribution
systems, providing voltage transformation and ensuring efficient and reliable
electricity supply to various industrial and commercial sectors
